The right landscape lighting transformer size is determined by a single calculation: add up the wattage of every lamp on the job, then multiply by 1.2 to add 20% headroom for voltage drop and future additions. That number tells you the minimum transformer capacity you need, which you then round up to the next available size. Most residential landscape jobs land at 150W, 300W, or 600W. Small front-yard jobs under 60W of connected load fit the Integral Timer 75W. Jobs with app control or zoning requirements move to the Jarvis 3-Zone Smart Wi-Fi Transformer.
The one formula that determines transformer size
Transformer sizing is a formula every landscape lighting contractor should have memorized. Total connected wattage multiplied by 1.2 equals the minimum transformer capacity. If you’re running twenty 4W MR16 lamps and ten 2W path light lamps, that’s 80W plus 20W, or 100W of connected load. Multiplied by 1.2 for headroom, you’re at 120W required capacity, which rounds up to a 150W transformer.
The 20% headroom accounts for two real-world factors. First, voltage drop over long cable runs means the transformer works slightly harder to deliver the same output at the far end of the system. Second, homeowners routinely add fixtures within a year of the initial install, and a transformer already running near capacity can’t accommodate that growth without a full swap. Contractors who skip the 20% headroom calculation are the ones who burn out transformers within 2 to 3 years. Sizing up one bracket is the cheapest insurance in the trade.
When the Integral Timer 75W is the right call
The Integral Timer Transformer 75W is built for smaller jobs where the client wants basic scheduled operation without a separate controller. Front-yard accent packages of 5 to 10 fixtures, small path lighting runs, detached structures, and outbuildings all fit within its capacity envelope. The built-in timer handles dusk-to-dawn and scheduled operation cleanly, and the whole install ends up as one transformer, one outlet, and no additional gear. This unit stops making sense above 60W of connected load, at which point the Professional Grade line handles the work better.
When Professional Grade 150W, 300W, or 600W is the right call
The Professional Grade line is the workhorse for standard residential and light commercial work. The Professional Grade 150W covers smaller single-zone homes running 10 to 20 fixtures. The Professional Grade 300W covers mid-size residential properties with 20 to 40 fixtures and multiple runs. The Professional Grade 600W handles large estates, long cable runs, or multi-zone commercial sites with 40 to 80 fixtures.
All three sizes share the features that matter on the truck: stainless housings, multi-tap outputs for voltage correction on long cable runs, and terminal blocks laid out for field serviceability. The multi-tap output is what separates a good install from a mediocre one on any job with cable runs over 100 feet, because without voltage correction, lamps at the far end of a long run drop out of spec and start reading dimmer and cooler than the rest of the system.

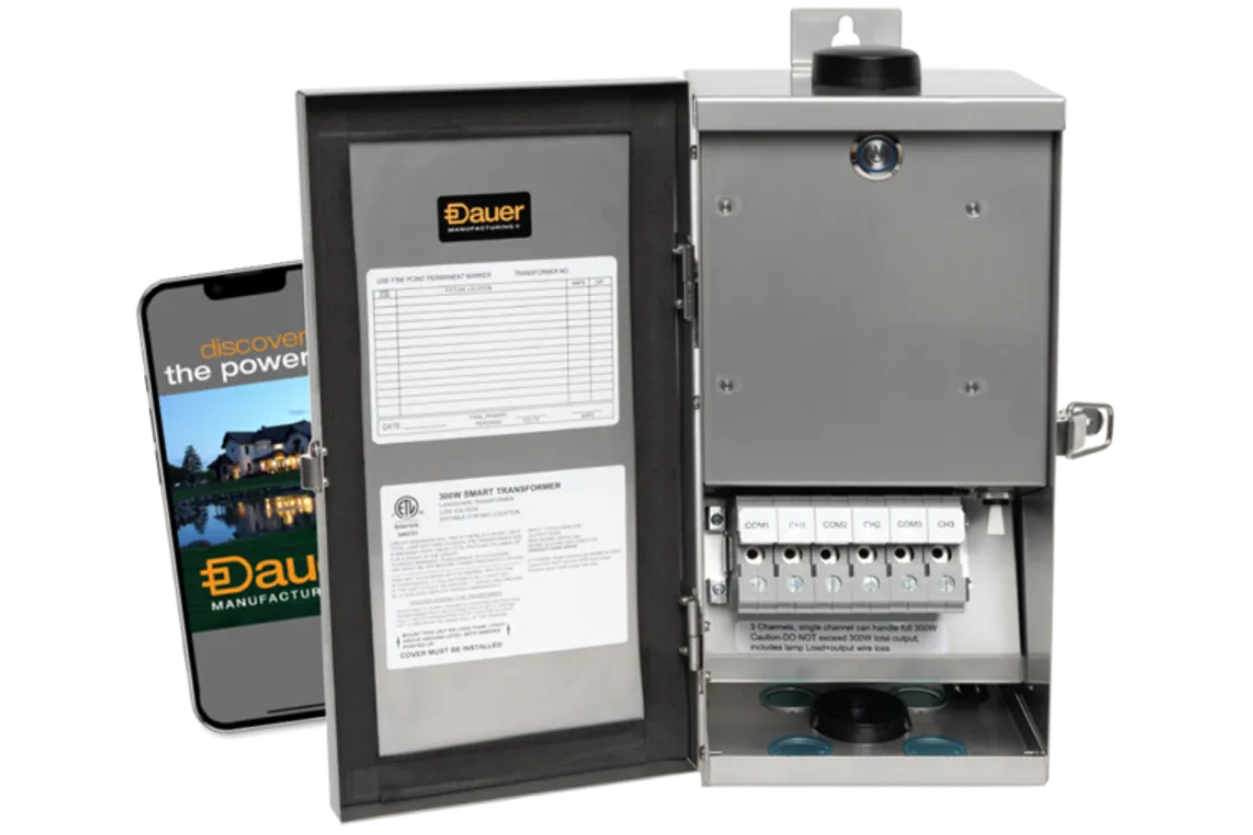

When the Jarvis 3-Zone Smart Wi-Fi Transformer is the right call
The Jarvis 3-Zone 300W Smart Wi-Fi Transformer is the right call anytime the client asks about app control, Alexa integration, Google Home, or running the lights from a phone. The 300W capacity fits most mid-size residential jobs in the 20 to 40 fixture range, and the three independent zones let the client run different schedules for path lighting, accent lighting, and architectural facade lighting.
Three-zone control is a real upsell if you frame it well. Path lights running dusk-to-dawn for safety, tree uplights running for entertaining hours, and facade lighting only for weekends and special occasions is exactly the kind of tailored operation clients pay a premium to have set up correctly.
Why undersizing costs more than sizing up
A transformer running at 95% capacity year-round will fail within 2 to 3 years, sometimes sooner. When it fails, you’re on the hook for a replacement unit plus the labor to swap it, and the client is asking why the system you installed last year is already broken. That’s a full callback that costs more than the price difference between the correctly sized transformer and the undersized one. Sizing up one bracket adds maybe $100 to $200 to the material cost on the job. A single callback with replacement labor runs $400 to $800 minimum. The math is not close.
Voltage drop depends on cable gauge, run length, and connected load. As a rule of thumb, a 12-gauge cable run of 100 feet with a 100W load drops about 5% of voltage. Longer runs or higher loads require heavier gauge cable (10-gauge) or the use of a transformer’s multi-tap outputs to compensate.
Yes, using a multi-tap transformer like the Professional Grade line or a zoned unit like the Jarvis. Multi-tap outputs let you split the total capacity across multiple branch circuits with different voltage taps for different run lengths.
Nothing bad. A transformer running at 40% capacity works exactly the same as one running at 80% capacity, just with more headroom for future expansion. There’s no efficiency penalty to oversizing.
Quality low-voltage transformers running at 60% to 80% of rated capacity last 10 to 20 years. Transformers running above 90% consistently fail in 2 to 5 years.
Only if the current transformer has enough spare capacity to absorb the new load plus 20% headroom. If the existing unit is already at or near capacity, you’re upgrading the transformer as part of the expansion.
Stainless steel housings hold up to weather, mounting hardware, and years of exposure and are what pros use. Plastic housings are common on budget consumer transformers and typically fail within 5 to 8 years from UV degradation and thermal cycling.
Need help sizing a transformer for a specific job? Contact NEI Distributors, and we’ll walk through the wattage, run lengths, and zoning before you finalize the quote.
