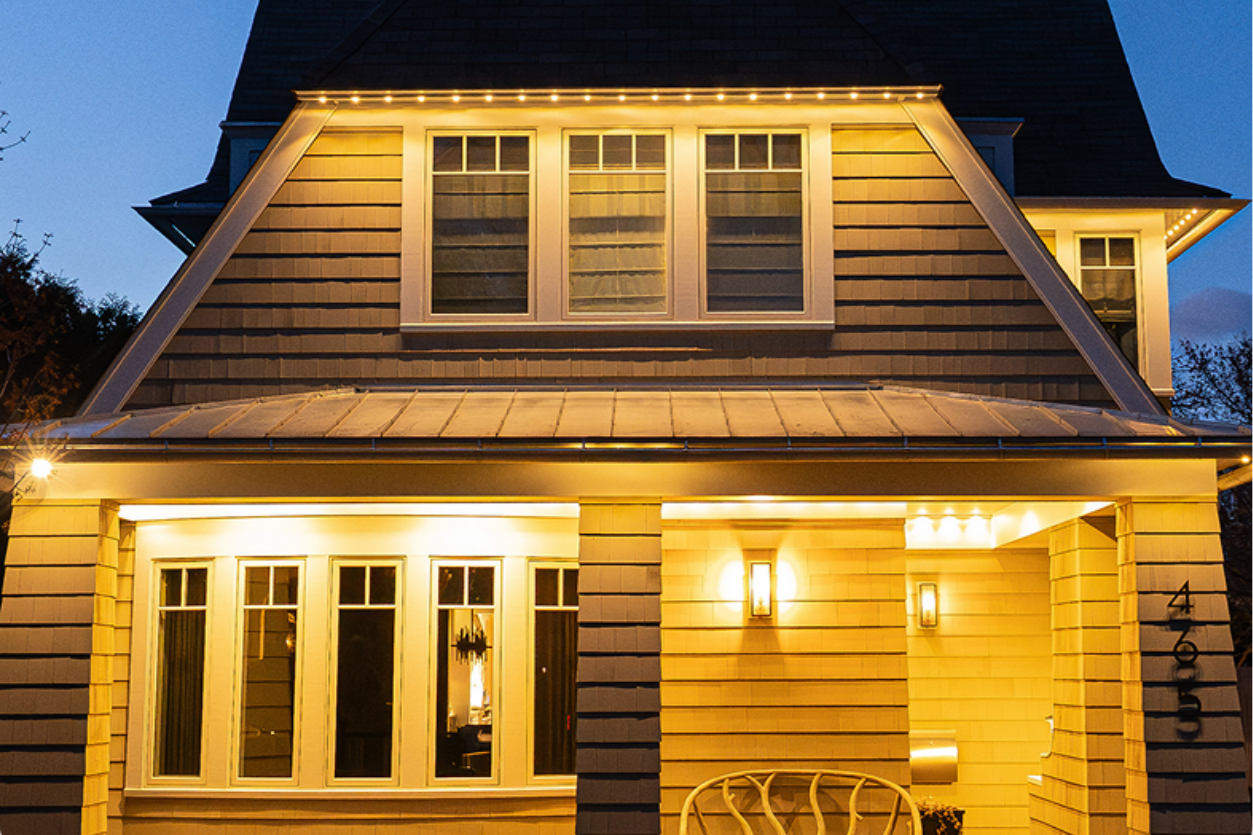

A permanent lighting system is built from five functional layers: the track that holds everything, the pixels that produce the light, the data infrastructure that tells each pixel what to do, the power supply that energizes the system, and the finishing components that make the installation invisible from the curb. Understanding how each layer works and how they connect is what separates contractors who troubleshoot a service call in ten minutes from contractors who spend a full morning on the same problem. This post is the deeper companion to the March install walkthrough, How to Install Permanent Lighting, and covers the component-level detail that the installation guide doesn’t.
Track: The Structural Backbone
Every permanent lighting install starts with track, and the first decision is where the pixels need to mount relative to the architecture. Hat Track installs on the soffit, pushing light downward from the underside of the overhang. Back Track installs on the fascia board, throwing light outward from the vertical face. The two solve different geometry problems, and most jobs use one or the other depending on how the home is built.
The3/4″ Hat Track is the default for most residential soffit installs and works with the standard 9.5″ pixel spacing. The 1″ Hat Track gives more room for wire management and is the right choice when you need extra clearance for cable runs or when the soffit detail calls for the larger profile. Back Track is the right call when the home doesn’t have a usable soffit or when the roof line transitions in a way that puts the fascia in the natural line of sight from the curb. Wiring, pixel compatibility, and mounting hardware are the same across all three.
Pixels: The Light Source
The RGBWW Pixel Light comes in two versions, and the only difference between them is the lead length between pixels. The RGBWW Pixel Light 9.5″ is the standard pixel and carries the run along every straight section of the install. The RGBWW Pixel Light 17.5″ is used at corners, because the 9.5″ lead is too short to make the turn cleanly.
Every job runs almost entirely on the 9.5″ with a 17.5″ dropped in at each corner. Walk the property, count the corners, and add a 17.5″ pixel for each one to the order.
Power and Data Run Parallel, Not Together
This is where most troubleshooting lives. Power and data are two separate systems that run alongside each other, and keeping them straight in your head is what makes service calls fast.
Data starts at the Data Control Box, which sends the signal telling each pixel what color and brightness to hold. From there, the Data Y Splitter fans the signal out to multiple runs from a single source. Data extension cords are stocked in every realistic length from 1′ jumpers for tight corners up through 20′ runs for long zone-to-zone spans, so you can cover any geometry without splicing in the field. Every run terminates at a Data End Cap, which prevents the signal reflection that causes the last few pixels in a run to flicker or drop colors. Missing End Caps is probably the single most common cause of end-of-run issues on installs that were otherwise wired correctly.
Power flows from either the 150W Control Box or the 450W Control Box, depending on pixel count and total run length. Power is distributed along the run using the Power Tapper 9.5″ with WAGO connectors, which use push-fit terminals that seat in about 30 seconds each. No stripping, no soldering, no heat-shrink. Power Tapper 9.5″ with WAGO handles the branching when runs split to reach multiple zones.
Power cords cover every distance from 1.5′ up through 25′. Power Wire comes in green, brown, and black, and the color choice is a maintenance feature rather than an aesthetic one. Using different colors across separate runs lets you trace each run back to its source during a service call without pulling apart the system or guessing which wire feeds which zone.
Finishing: What Makes the Install Disappear
Loom Tube in three colors hides the exposed wire where it runs between track sections, typically at corners, downspout transitions, or where the system crosses from soffit to wall. Match Loom Tube Black,Loom Tube White, or Loom Tube Brown to the trim color on the fascia, soffit, gutter, and overall house. It’s a small detail that pushes a finished install from “good” to “invisible from the curb.” On higher-end homes, that detail is often what earns the referral.
How to Diagnose a Permanent Lighting Service Call
Because every component lives in one of five functional layers, diagnostics are fast once you know the architecture. Most service calls match one of these symptom patterns:
- Single pixel dark: Data issue on the cord feeding that pixel. Swap the cord before swapping the pixel.
- Whole run dark: Power issue at the Control Box, Power Tapper, or WAGO connection.
- Last few pixels flickering or dropping colors: Missing or damaged Data End Cap.
- One zone is dark while others are fine: Data Y Splitter or the data extension cord feeding that branch.
Working through those four patterns resolves the vast majority of service calls in under fifteen minutes.
For the full install walkthrough, see How to Install Permanent Lighting. To spec components for your next system, browse the permanent lighting category at NEI.
