Choosing between an MR16 and an encapsulated bi-pin landscape lamp comes down to three factors: the fixture you’re installing, how the light needs to behave once it’s on, and the conditions the lamp will live in. MR16 lamps are directional and built for accent work. Encapsulated bi-pin lamps are sealed and omnidirectional, designed for ambient glow inside visible fixtures. Knowing which one to spec upfront saves callbacks and lets you pitch the right design with confidence.
What’s the Difference Between MR16 and Encapsulated Bi-Pin Lamps?
The two lamp types solve different problems on a landscape install, and the distinction is both mechanical and optical.
MR16 is a lamp form factor with a built-in reflector housing, originally designed for film and architectural accent lighting. The reflector sits behind the LED array and shapes the output into a controlled beam, which is why MR16 lamps are specified by beam angle. A 25° MR16 produces a tight, focused beam. A 40° MR16 spreads that beam wider. The lamp is designed to be seated into a fixture and aimed, so the fixture’s job is structural (holding the lamp at the correct angle and protecting it from weather), while the lamp itself shapes the light.
Encapsulated bi-pin is a completely different design philosophy. The LED chip is sealed inside a small resin or silicone encapsulation with two pins at the base for electrical contact. There’s no internal reflector, so the light radiates outward in all directions evenly. That’s what “omnidirectional” means in this context. The lamp’s job is simply to produce light. The fixture itself, whether that’s a path light hood, a step light bezel, or a bollard cap, is what shapes and directs the output that the homeowner actually sees.
That core difference drives every other decision. If the job calls for a beam of light hitting a specific surface, you want an MR16. If the job calls for an even glow inside a decorative fixture, you want an encapsulated bi-pin. The fixture itself almost always dictates the socket type, so in practice the lamp decision is made the moment the fixture is spec’d. The real choice is selecting the right variant of each lamp family for the color temperature, wattage, and beam spread the site needs.
When to Spec an MR16 Lamp
MR16 is the right call anytime the job needs light to go somewhere specific. The reflector geometry inside the lamp produces a defined beam, which is what makes it work for tree uplighting, architectural grazing, column accents, and soffit washes. The NEI MR16 LED Lamp line covers the full range of applications contractors see on residential work, available in both 2700K and 3000K and in 25° and 40° beam spreads. For warm-toned properties, the MR16 LED Lamp 2700K 25° and MR16 LED Lamp 2700K 40° cover tight beams and wider washes. For cooler modern architecture, the MR16 LED Lamp 3000K 25° and MR16 LED Lamp 3000K 40° match the palette.
Beam spread is the decision that changes most often on-site. A 25° concentrates light for tall columnar trees, narrow columns, or any situation where you want a tight beam running up a vertical surface. A 40° pulls back to cover wider tree canopies, broader wall washes, or larger signage. Carry both on the truck because you’ll swap them more than you expect once you see how the light actually lands.
Fixture choice usually makes the MR16 decision automatically. The Icon Solid Brass MR16 uplight is built around the MR16 reflector for featured trees and architectural accents, and the solid brass construction holds up in coastal and heavily irrigated environments. The Hideway MR16 Soffit Light is designed to disappear into eaves while pushing directional light down onto siding, shutters, and entryways. Both fixtures rely on the MR16 beam pattern to do their job, so there’s no substitution available.
When to Spec an Encapsulated Bi-Pin Lamp

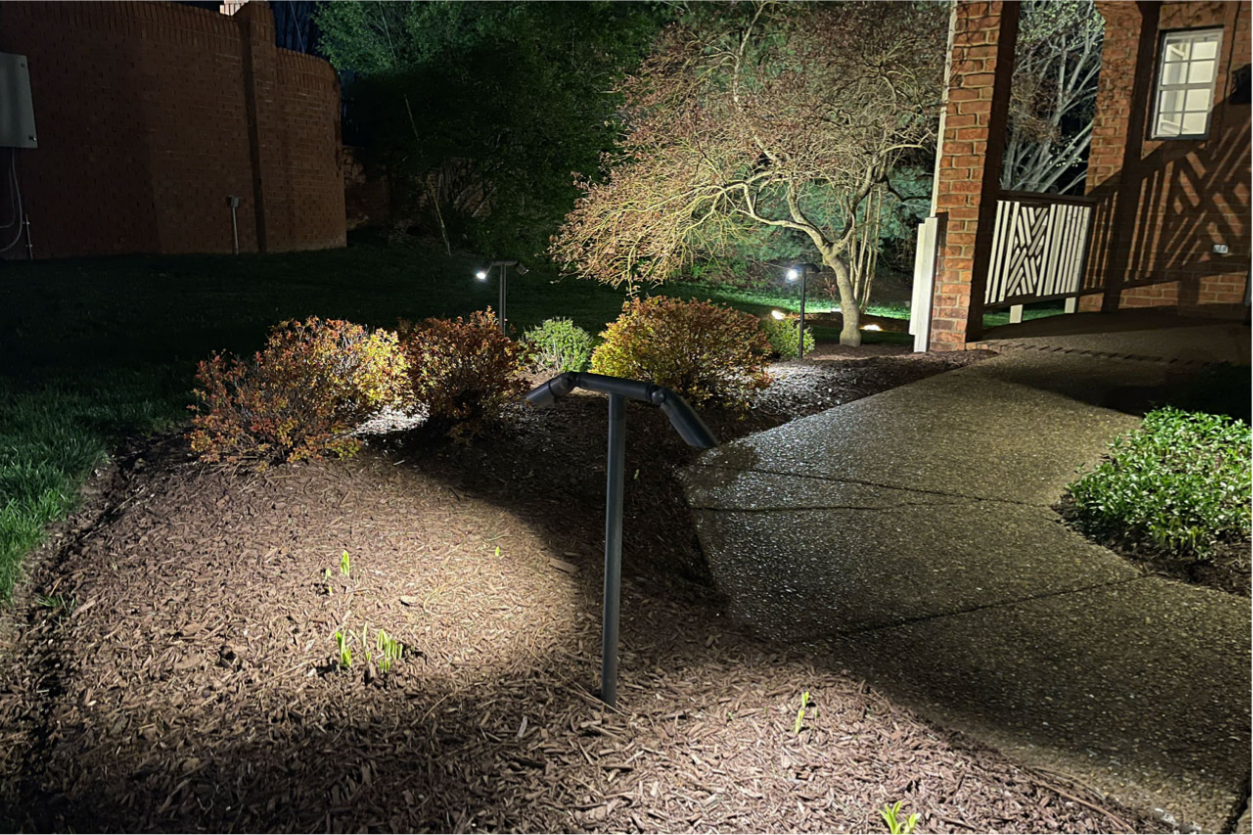

Encapsulated bi-pin lamps belong in fixtures where the fixture itself shapes the visual. Path lights, step lights, bollards, hardscape lights, and post lanterns all use bi-pin sockets because the job of the lamp is to fill the fixture evenly, not to throw a beam. NEI stocks the full series across both color temperatures and wattages:
- Encapsulated Bi-Pin 2700K 2W for warm-toned path and step lighting
- Encapsulated Bi-Pin 3000K 2W for cooler-toned path and step lighting
- Encapsulated Bi-Pin 2700K 4W for brighter warm output in post lanterns or hardscape fixtures
- Encapsulated Bi-Pin 3000K 4W for brighter cool output in post lanterns or hardscape fixtures
The sealed encapsulation matters more than most contractors think. On irrigated properties, coastal installs, or fixtures that sit low in mulch and groundcover, moisture intrusion is the number one cause of premature lamp failure. An encapsulated design resists that intrusion and meaningfully reduces warranty calls over the life of the system. If the fixture is going to see water regularly, an encapsulated bi-pin is the long-term correct choice.
How to Choose Color Temperature
Color temperature is the same decision for both lamp types and should be driven by the architecture and the material palette of the site. 2700K reads warmer and pairs with traditional homes, historical properties, and landscapes where the client wants lighting that reads like incandescent. 3000K is cleaner and better suited to modern architecture, commercial properties, or sites where whites, grays, and cooler stone dominate the materials. Mixing color temperatures on a single job reads as inconsistent from the curb, so commit to one across the full install.
Stocking for Real Jobs
Most residential landscape installs lean heavily on bi-pin fixtures than MR16, because path lighting and hardscape fixtures typically make up the majority of the fixture count. MR16 lamps earn their place on the hero moments: the specimen tree uplights, the soffit washes, the architectural accents that actually sell the design to the homeowner during the walk-through. A well-stocked truck carries both color temperatures in both lamp types, plus both beam spreads for MR16.
Spec the lamps alongside the fixtures on every bid. Clients don’t shop for lamps, but they do notice when a system looks cohesive, and consistent lamp selection across a property is one of the details that pushes the finished job from acceptable to premium.
